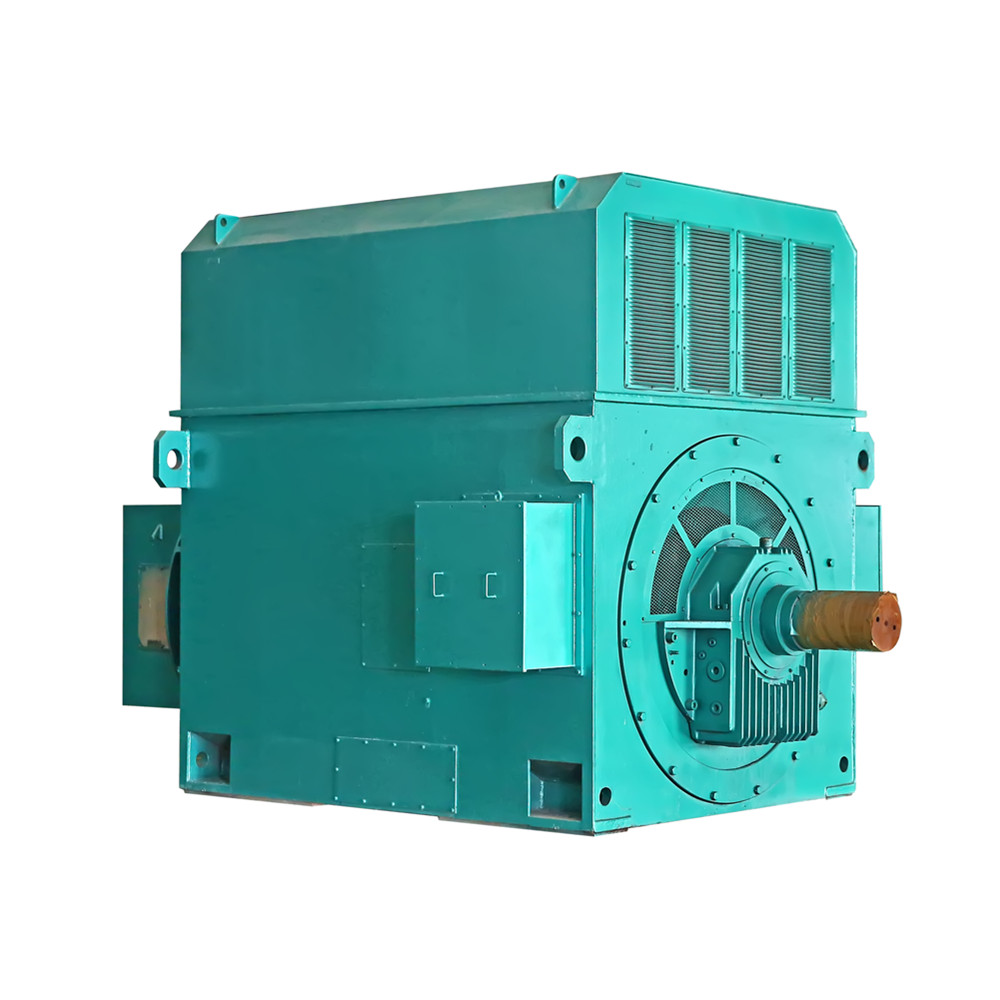

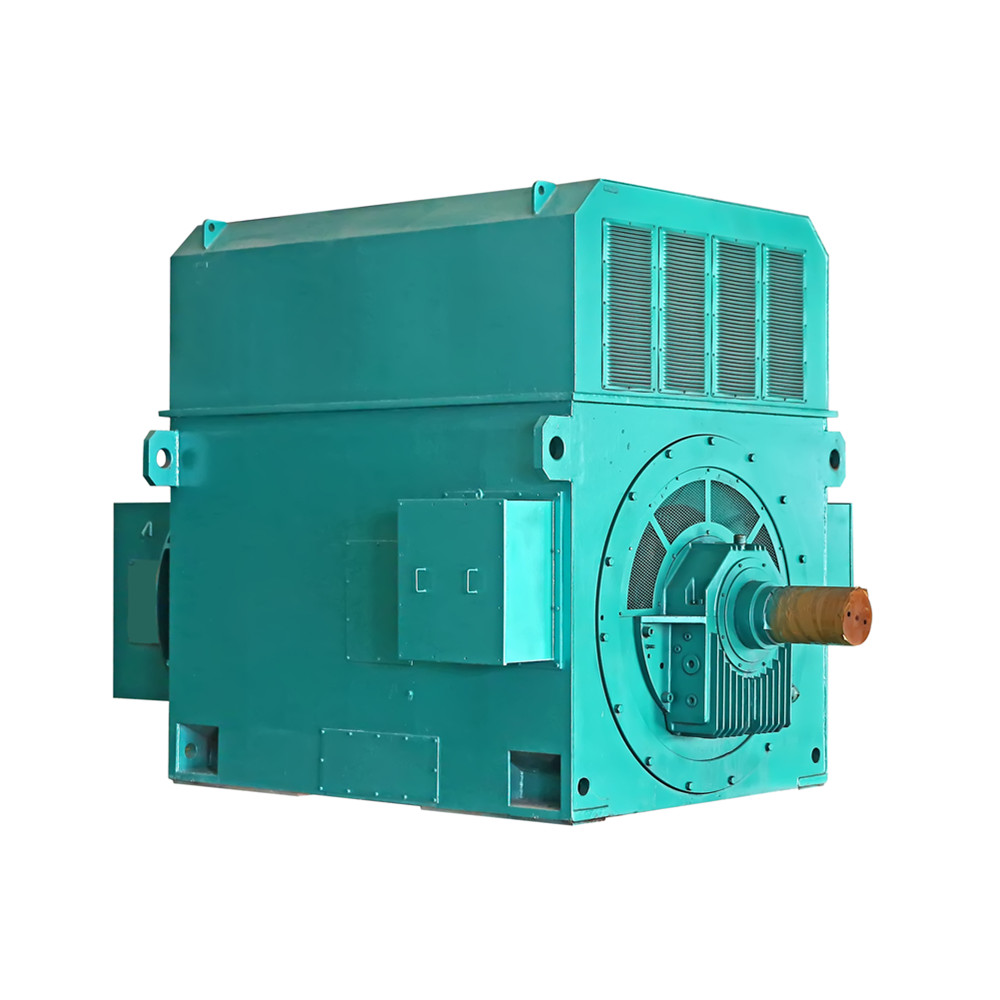

Model Description of Simo's YRKK Series High - Voltage Wound - Rotor Three - Phase Asynchronous Motors in Xi'an
Take Simo Motor YKK3551 - 4 as an example: YRKK represents a wound - rotor asynchronous motor with a closed air - to - air cooler; "3551" indicates that the center height of the frame is 355mm and it has a No. 1 core length; "4" represents the number of poles.
The YRKK series 6KV and 10KV wound - rotor three - phase asynchronous motors are the latest products in China in the 1980s. Their power ratings and installation dimensions comply with the standards of the International Electrotechnical Commission (IEC).
The YRKK series motors have the advantages of high efficiency, energy conservation, low noise, small vibration, light weight, reliable performance, and convenient installation and maintenance.
The Xi'an Simo YKK series (H355 - 1000) high - voltage three - phase asynchronous motors can provide a large starting torque with a small starting current; when the capacity of the feeder line is insufficient to start a squirrel - cage rotor motor; when the starting time is long and the starting is relatively frequent; and in occasions where a small - range speed regulation is required. For example, they are used to drive winches, rolling mills, wire - drawing machines, etc.
The YRKK series motors adopt a Class F insulation structure. The bearing structure is designed according to IP54, and grease lubrication is used, allowing for oil addition and drainage without shutting down the machine.
The protection level of the YRKK series motors is IP44 or IIP54 (see GB4942.1), the cooling method is IC611 (see GB/T1993), the structure and installation type is IMB3 (see GB997), the rating is a continuous rating based on the continuous duty system (S1), the rated frequency of the motor is 50HZ, and the rated voltages are 6KV and 10KV. For other voltage levels or special requirements, they can be negotiated with the manufacturer when placing an order.
Simo Motor (Group) Co., Ltd. is a large - scale domestic enterprise specialized in manufacturing large and medium - sized, high and low - voltage, AC and DC motors. It is a systematic power system provider integrating motor design and manufacturing, electrical control, mechanical processing, mold, casting, transportation, and other automation and complete projects. Its production and sales scale ranks among the top in the national motor industry, maintaining a high - speed growth trend for 7 consecutive years. It was shortlisted in the top 500 of China's machinery industry in 2004 and ranked 58th in China's electrical industry in 2005. In 1995, it took the lead in obtaining the ISO9001 - 1994 quality system certification in the industry. In August 2005, it passed the ISO9001 - 2000 quality system certification of the China Quality Certification Center (CQC). In May 2006, it passed the ISO14000 environmental management system and OHSAS18000 occupational health and safety management system certifications. At the same time, it passed the European "CE", American "UL", and national mandatory "CCC" certifications. It is a quality and credit AAA - level enterprise. Its leading products have successively won honorary titles such as "Ministry/Provincial/Municipal Famous Brand Products", "Xi'an Inspection - free Products", and "China Glory Famous Brand Products".
In order to improve the quality of various electromechanical products, strengthen pre - sales and after - sales services, and make customers feel at ease and satisfied, Simo Motor resolutely implements the "Quality Assurance Statement" of eight scientific research and design institutes in the machine tool industry of the Ministry of Machinery Industry, conscientiously implements all the clauses in the statement, and strictly follows the rules and regulations of the ISO9001:2000 quality management system to ensure:
- Seriously implement relevant national standards, and strictly manufacture and inspect the products according to the standards or contract technical requirements. Unqualified products will not leave the factory.
- After the final assembly and on - line commissioning of various finished products such as product measurement bases, the assembly personnel conduct a 72 - hour running test before delivery. Strictly conduct running - in tests and reliability tests according to relevant standards to improve the reliability of new products and eliminate early failures.
- Under normal sales conditions, the above - mentioned finished products are delivered strictly on schedule. Functional components are guaranteed to be supplied within three months, and can be supplied in advance in special cases. In case of delay, compensation will be implemented according to the "1997 New Measures for Quality Improvement".
- When customers find quality problems during the use of products, a reply will be made within 24 hours after receiving the customer's notice. For on - site services, start within 48 hours and ensure that maintenance personnel do not withdraw until the fault is eliminated.
- Complete technical documents are provided when the product leaves the factory. All product quality problems are covered by three - guarantee repair. If the product still does not meet the factory requirements after repair, the product will be returned or replaced.
- Simo Motor products are guaranteed for lifetime maintenance at cost after being sold.
The default technical parameters of the Xi'an Simo YKK series (H355 - 1000) high - voltage three - phase asynchronous motors are as follows:
Motor model: YRKK3551 - 4 Installation method: IMB3
Rated power: 185KW Protection level: IP44 or IP54
Rated voltage: 6KV Cooling method: IC611
Rated frequency: 50HZ Insulation class: Class F
Synchronous speed: 1500r/min Ambient temperature: Altitude 1km, Ambient temperature: 40℃.
- When placing an order, please first refer to the product catalog to determine the model specifications and other data of the required product. Try to select the standard specification products listed in the catalog. Please indicate the motor model, power, speed regulation, voltage, frequency, noise, and installation type in the order contract. If the noise level is not specified, it will be supplied as level 2.
- If there are special requirements, such as double shaft extension, reverse terminal box position, reverse rotation of the shaft, requirements to be made into a wet tropical type, outdoor anti - corrosion type, or others, they need to be clearly indicated in the contract and contact our factory in advance.
